Compact and portable design fits installation where needs high demand, can be installed in many different shapes. Groundstack or hoist installation etc.
Coverage of F series is 90×60 degree. May also change to 60×90 by rotate the horn. 5-20m distance application is good for audience and sound quality is excellent.
F series has flat frequency curve. May combine with S series 12/15/18/21/24 in for a full frequency range.

Model	F806 F906	F808 F908	F810 F910	F812 F912	F815 F915	F830 F930
Driver (inch)	LF:1×6.5″ HF:1×1″	LF:1×8″ HF:1×1″	LF:1×10″ HF:1×1.4″	LF:1×12″ HF:1×1.8″	LF:1×15″ HF:1×1.8″	LF:2×15″ HF:2×1.8″
DC-Impedance	9.6 Ohm	9.6 Ohm	9.6 Ohm	6.4 Ohm	4.8 Ohm	2.4 Ohm
Freq.response (HZ/-6db)	80-22k	70-22k	60-22k	55-20k	50-20k	40-20k
Power consumption (W）	150	200	250	300	400	800
Peak Voltage (Vp）	100	100	100	100	100	100
Peak Current (Ap）	6	8	10	15	20	40
Peak power (W)	600	800	1000	1200	1600	3200
Sensitivity (db/m.w)	96	97	98	99	100	103
Maximum SPL (db)	124	126	127	129	132	138
Coverage (H°xV°）	90×90	90×90	90×60	90×60	90×60	110×30

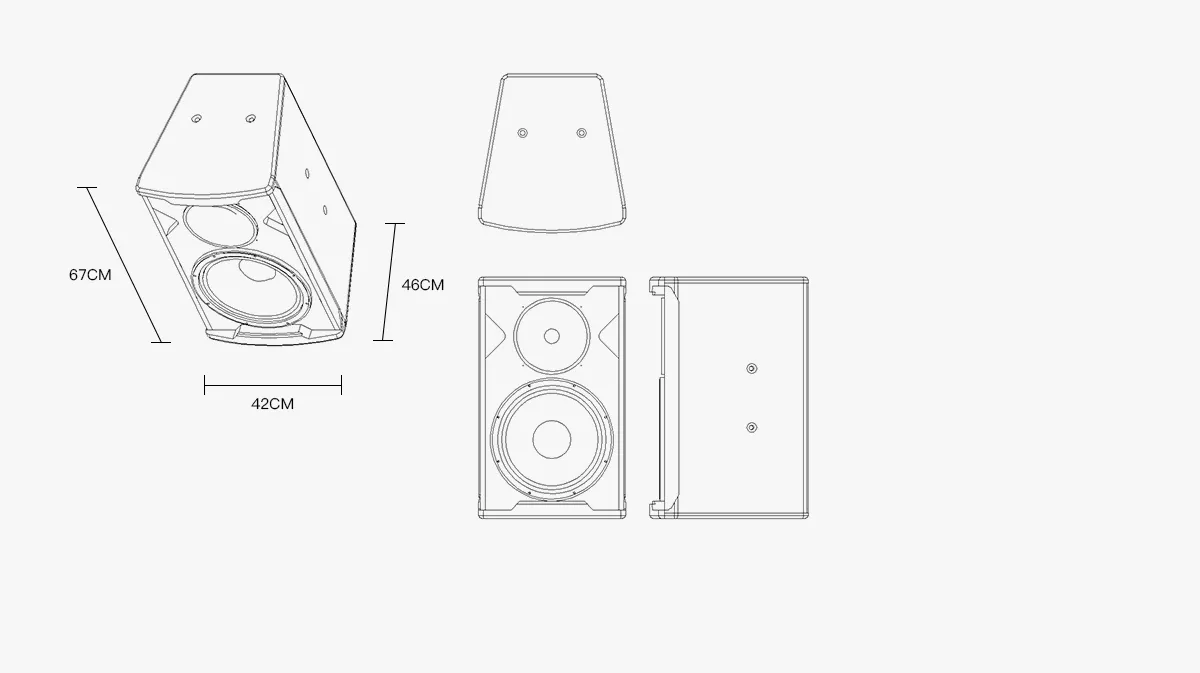

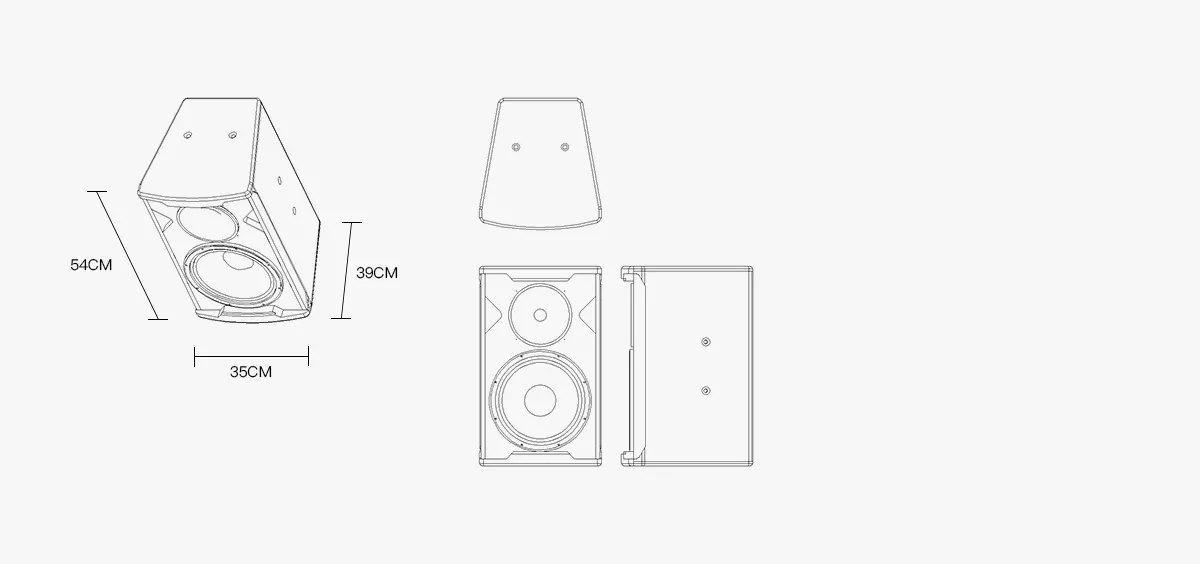

Size (cm)	21x36x23	25x41x28	30x48x33	35x54x39	42x67x46	43x125x50
N.W.(kg)	8	10	14	18	25	38
