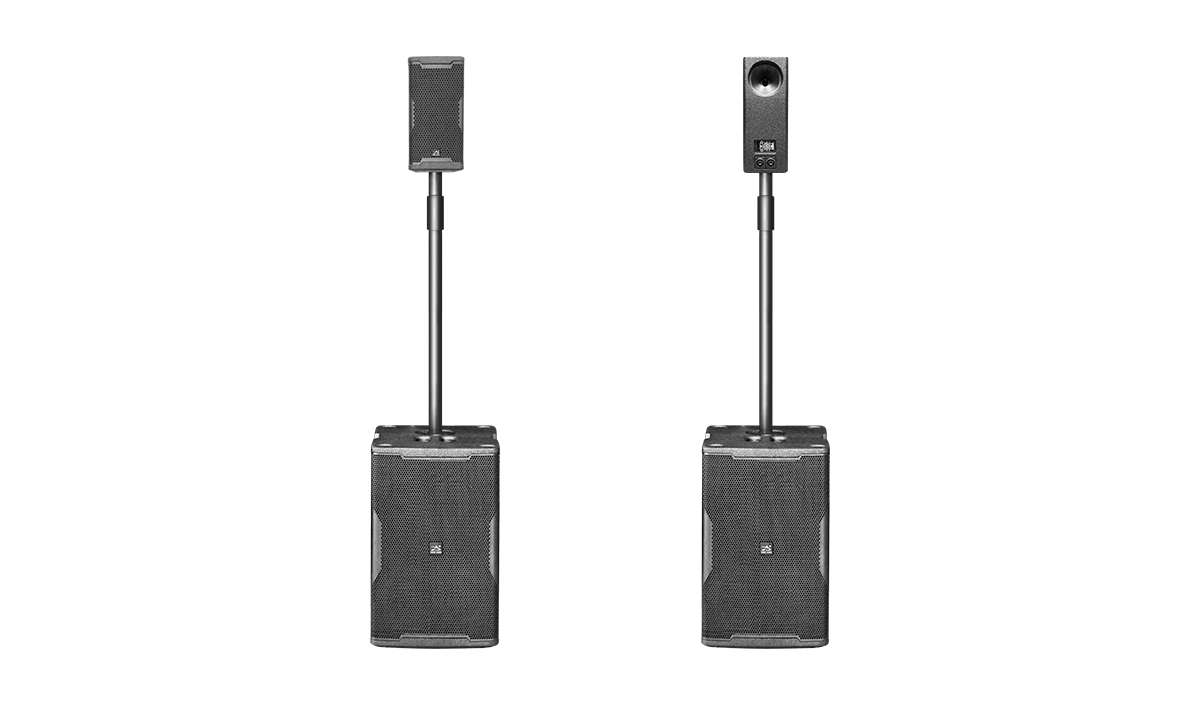

- R1 system includes full range speaker and subwoofer, equipped 2 channels power amplifier modules on subwoofer, 2-way independent signal input, flexible usage.
- Portable design, fast assemble or disassemble. Use for restaurant,café bar, personal room speaker, dancing room, small size music show and speech.
- The sound quality of R1 system is similar as monitors in recording studio.But the sound pressure level will be affording for a place over 100 people.
| Model | PF15 | S12A | S12P |
| Driver (inch) | LF:1×5″
HF:2×1″ |
1×12″ | 1×12″ |
| DC-Impedance | 12.8 Ohm | 4.8 Ohm | 4.8 Ohm |
| Freq.response (HZ/-6db) | 90-22k | 25-200 | 25-200 |
| Freq.response (HZ/-6db) | 75 | 300 | 300 |
| Peak Voltage (Vp) | 100 | 100 | 100 |
| Peak Current (Ap) | 7.5 | 20 | 20 |
| Peak power (W) | 300 | 1200 | 1200 |
| Sensitivity (db/m.w) | 96 | 98 | 98 |
| Maximum SPL (db) | 122 | 129 | 129 |
| Built-In Amplifier | 3x1200w | ||
| Operation Range | AC: 90-264V/PFC DC: 120-240V | ||
| Coverage (H°xV°） | 90×90 | — | |

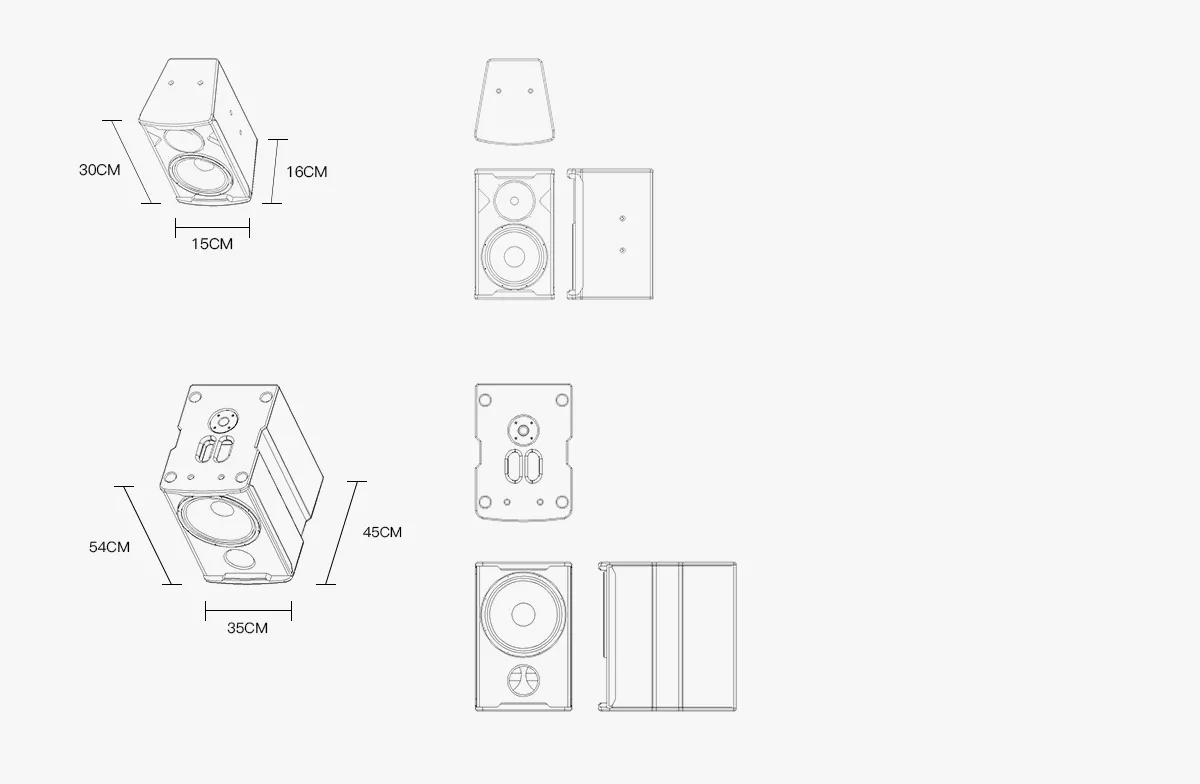

| Size (cm) | 15x30x16 | 34x54x45 | 35x54x45 |
| N.W.(kg) | 3 | 20 | 18 |
